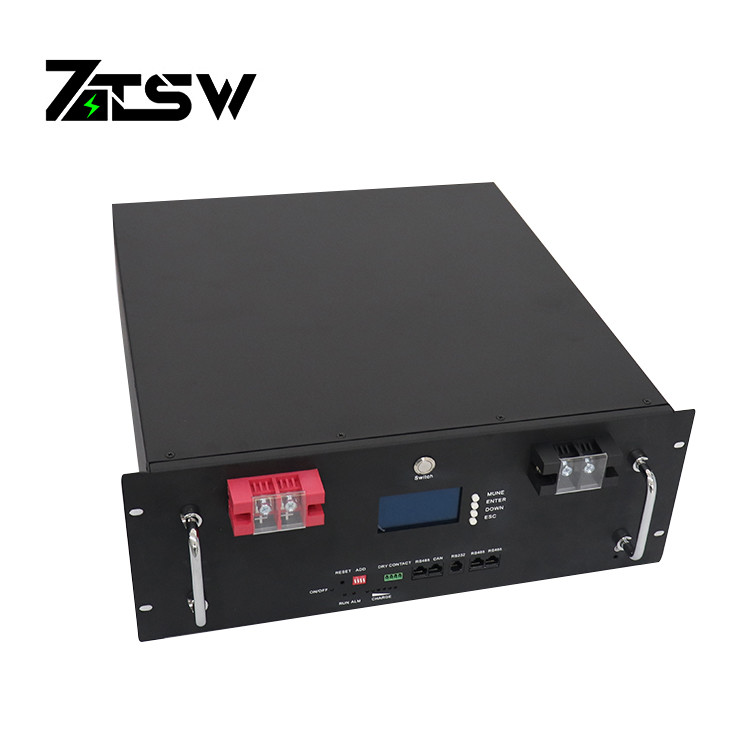

51.2V100ah 5kw LiFePO4 Solar Energy Storage Power Supply Wall
Mounted Rechargeable Battery
Quick Detail:
Long cycle life
. Ultra low self discharge
. More usable capacity
. BMS Protection
. Fast Charging
. Light weight
. Increased flexibility
. Easy installation
. Environment friendly
Description:
LiFePO4 battery has a built-in BMS High temperature resistance can
reach 75℃,The built-in high
temperature cut-off function prevents charging at temperatures
above 75℃,Can prevent short circuit,
over charge, over discharge, over current.Operating temperature:
Charge at 0℃-45℃;Discharge at -20℃-60℃.
LiFePO4 batteries can be used in the following fields: electric
vehicles, recreational vehicles, golf carts,
boathouses, towing motors, lighting, UPS backup power supply, home
solar equipment, portable TV, etc.
Lead-acid batteries can only use 200-400 cycles, and our LiFePO4
battery can cycle 4000+ times, and in the
state of full charge and full discharge can cycle more than 1500
times, the service life of lead-acid battery is 3 times.
LiFePO4 battery,Can achieve truly deft effect,It weighs only 30% as
much as a typical lead-acid battery,
Only 96.8 pounds Easy to carry and easy to install is the best
choice for camping.
Specifications:
48V100Ah
| Electrical Characteristics | Technology | Lithium Iron Phosphate |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah ±5%@0.2C |
| Energy | 5.12KWh |
| Cycle Life | ≥3000 cycles @ 0.2C 80%DOD |
| |
| Charge | Charge Voltage | 58.4V |
| Max. Continuous Charge Current | 50A |
| Discharge | Discharge Cut-off Voltage | 42.0V |
| Max. Continuous Discharge Current | 100A |
| Operating Condition | Charge Temperature | 0ºC to 50ºC (0.2C Charge) |
| Discharge Temperature | -20ºC to 60ºC (0.2C Discharge) |
| Structure | Case and Cover | Iron |
| Dimension (W*D*H) | 440*460*177mm |
| Weight | Approx. |
Notices:
1. For outdoors, only to generate power. The efficiency of a solar
panel is variable depending on
environmental conditions.
2. Avoid any shelter (such as buildings, plants, etc.) during use,
otherwise, the charging speed will be
negatively affected.
3. After the device is successfully connected, it is recommended to
move your electronic device into a
cool and ventilated place. If the electronic device is in a
high-temperature environment for a long time,
power consumption will increase and may occur power failure.
Applications:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it
depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the
different part numbers. 1~10pcs sample
order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea
shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your require-
ments or our suggestions.Thirdly customer confirms the samples and
places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Contact us for more details about Price, Packing,
Shipping and Discount.
