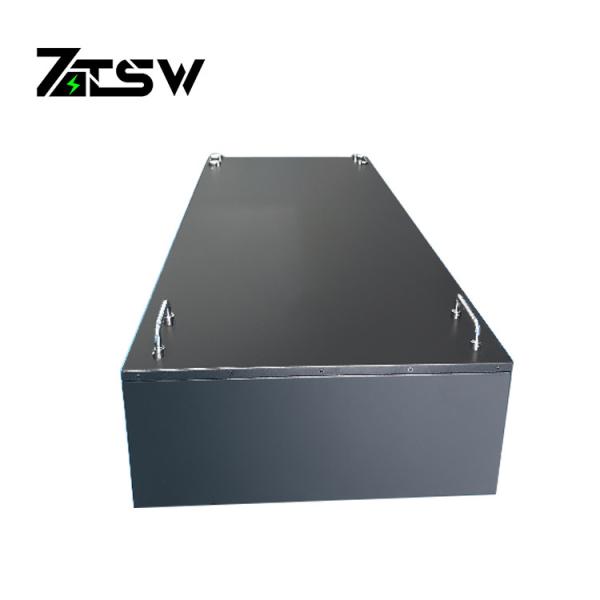

24V 600Ah LiFePO4 Battery 8000 Cycles Solar System RV Boat
24V 600Ah LiFePO4 Battery 8000 Cycles Solar System RV Boat High
Discharge Rates
Quick Detail:
• More than 8000 Cycles
• Battery modules available for parallel and series for higher
voltage and capacity
• BMS Passive cell balance funciton
• IP66, IP67, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation for your marine boat or RV
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
•HS Code:8507600090
•Certification CE, FCC, PSE, UN38.3, MSDS, sea and air transport
report
Description:
24v Lithium Iron Phosphate batteries (LiFePO4) are extremely
powerful, capable of providing high discharge
rates even at elevated temperatures. Safety is improved over other
lithium ion chemistries due to its thermal
and chemical stability, Many applications using sealed lead acid
(SLA) are upgrading their battery power with
ZTSW drop in replacement LiFePO4 battery.
Each battery has an internal Battery Management System (BMS) That
protects the battery from Over Charging,
Over Discharging, Short Circuit and over current, over temperature
along with cell balancing to provide you with
the best performance and longest life out of the battery.
This Product Is Perfect For Motorhomes, Travel Trailers, Fifth
Wheels, Boats, Yachts, Sailing, Trolling Motors,
Electronics, Solar Backup Power, and Other Deep Cycle Applications.
Specifications:
24V 600Ah LiFePO4 Battery Solar System RV Boat
| Items | LIFEPO4 BATTERY |
| Battery Type | LiFePO4 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 600Ah |
| Energy | 15,360Wh |
| Internal Resistance | ≤15mΩ |
| Series & Parallel Application | Customized |
| Limited Charge Voltage | 29.2V |
| Floating Charge Voltage | 20V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 20V |
| Charge Current | 150A (Customizable) |
| Continuous Discharge Current | 600A (Customizable) |
| Pulse Discharge Current | 1200A (Peak) |
| Cycle Life | > 8000 cycles |
| Dimension (mm) | Customizable ( can made with cabinet) |
| Weight | 150Kg |
| Charge Temperature Range | 0~55℃ |
| Discharge Temperature Range | -20~65℃ |
| Recommended Operating Temperature | 15~50℃ |
| Storage Temperature & Humidity Range (Less than 1 month) | -20~35℃, 45~75%RH |
| Storage Temperature & Humidity Range (Less than 3 months) | -10~35℃, 45~75%RH |
| Recommended Storage Temperature & Humidity Range | 15~35℃,45~75%RH |
Notices:
1. For outdoors, only to generate power. The efficiency of a solar
panel is variable depending on
environmental conditions.
2. Avoid any shelter (such as buildings, plants, etc.) during use,
otherwise, the charging speed will be
negatively affected.
3. After the device is successfully connected, it is recommended to
move your electronic device into a
cool and ventilated place. If the electronic device is in a
high-temperature environment for a long time,
power consumption will increase and may occur power failure.
Applications:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it
depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the
different part numbers. 1~10pcs sample
order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea
shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your require-
ments or our suggestions.Thirdly customer confirms the samples and
places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Contact us for more details about Price, Packing,
Shipping and Discount.
