25.6V 280AH Lithium Ion LiFePO4 Battery RS485 RS232 CANBus For
Forklift
25.6V 280AH Lithium Ion LiFePO4 Battery RS485 RS232 CANBus For
Forklift
Quick Detail:

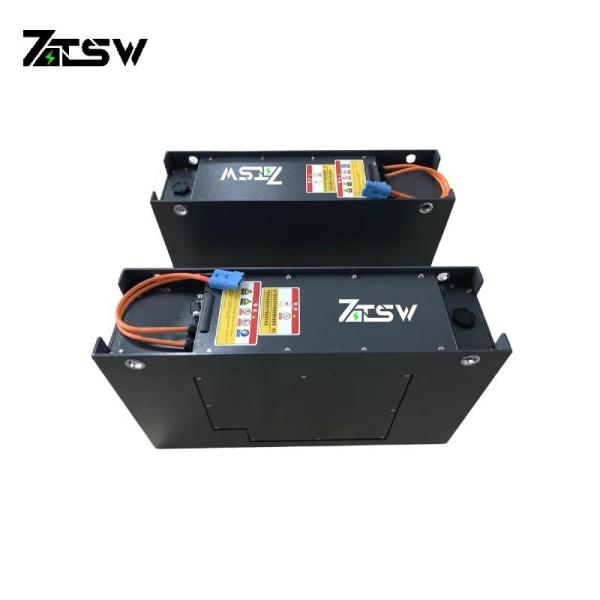

Lithium iron phosphate battery pack 25.6V 280AH LiFePO4 battery
pack:
1. Low internal resistance, low self-discharge, no memory effect,
safety and environmental protection.
2. Long cycle life and high specific energy. The life of a single
cell ring is more than 4000 times.
3. Flexible packaging, laminated type, lean liquid, good safety.
4. The product is maintenance-free, has a wide operating
temperature range, high reliability, and
is environmentally friendly and pollution-free.
5. Capacity, magnification and size can be customized. The battery
combination method can be
based on customer requirements.
6. Diversified product structure, providing one-stop solutions for
various application fields
Description:
As professional forklift battery suppliers, we provide customers
with lithium forklift battery solutions.
LiFePO4 batteries have the characteristics of high energy density,
long cycle life, high safety performance,
product consistency, and can adapt to a wide range of environments.
Our forklift battery adopts an intelligent management system that
can fully control the system, achieve
automatic battery output balance and extend the battery life.
Intelligent thermal management circuit design
fully safeguards reliable operation at high and low temperatures.
With the features of maintenance-free,
zero-emission, long life, strong power, the batteries ensure the
equipment to work stably in the long term.
Lithium forklift batteries provide significantly faster-charging
speeds and do not require charging cooling.
It helps optimize daily productivity and even reduces the number of
forklifts required to accomplish objectives
Specifications:
ELECTRICAL SPECIFICATIONS |
Nominal Voltage | 25.6V |
Nominal Capacity | 200Ah |
Nominal Energy | 5120Wh |
nternal Resistance | <30 @50% SOC |
Capacity | @40A: 300minutes(5hours) |
Self Discharge | 5% /per month |
Tlaximum In Series | 2PCS |
Maximum In Parallel | No limit |
Discharge Current and Voltage Specifications |
71 AX Continuous Discharge Current | 200A |
Peak Current | 500A |
Discharge pulse current | 700±50A (31±10ms) |
BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) |
Short Circuit Protection | 200-800 ps Auto recover or charge release |
Temperature Ranges |
Discharge Temperature | -20 ~ +65°C |
Charge Temperature | -20 ~ +45°C |
Storage Temperature Range | -20 ~ +45°C |
BMS High Temperature Protection | 90°C |
Battery High Temperature Protection | 60°C |
MECHANICAL SPECIFICATIONS |
Terminal Type | M8 |
Weight | 41kg |
Case Dimension(L'W'H) | 550*305*260mm |
Case Type | Metal case |
Cell type / Chemistry | LiFePO4 |
LCD or Bluetooth Function | Optional |
BMS:low voltage,high voltage.over temperature, |
Over current,short-circuit protection .etc |
Charge Current and Voltage Specifications |
Max Charge Current | 200A |
Recommended Charge Current | 40A-100A |
End of Charge voltage | 28.8V±0.2V |
Balancing current | Auto start |
Balancing Voltage | 3.6V±0.05v pc |
COMPLIANCE SPECIFICATIONS |
| CE for Battery Pack |
Certifications | UL1642 & IEC62133 & BIS for |
| cells |
Shipping classification | UN 3480 |
Notices:
1. For outdoors, only to generate power. The efficiency of a solar
panel is variable depending on
environmental conditions.
2. Avoid any shelter (such as buildings, plants, etc.) during use,
otherwise, the charging speed will be
negatively affected.
3. After the device is successfully connected, it is recommended to
move your electronic device into a
cool and ventilated place. If the electronic device is in a
high-temperature environment for a long time,
power consumption will increase and may occur power failure.
