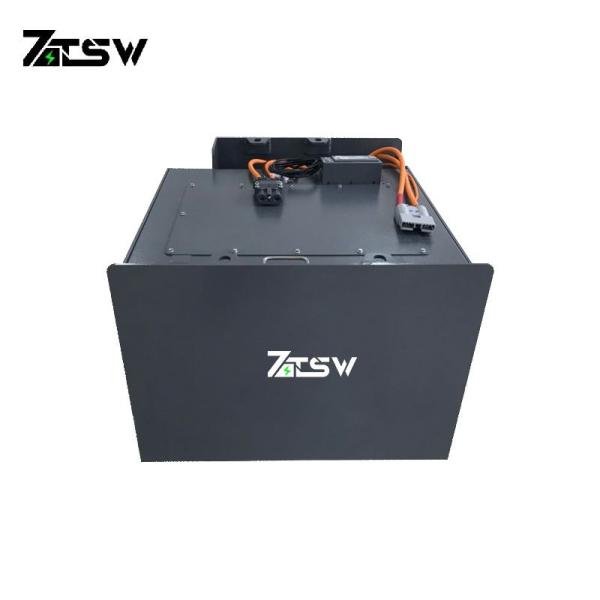

    80V 300ah Electric Lifepo4 Forklift Battery Deep Cycle Industrial Truck Battery

    Ask Lasest Price
    Brand Name : ZTSW/OEM/ODM
    Model Number : 80V Forklift battery
    Certification : CE/ROHS/ISO/UL certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs per month
    Delivery Time : 5-15days
    • Product Details
    • Company Profile

    80V 300ah Electric Lifepo4 Forklift Battery Deep Cycle Industrial Truck Battery

    Deep Cycle 80 V300ah Industrial Electric Lifepo4 Forklift Truck Battery

    Deep Cycle 80 V300ah Industrial Electric Lifepo4 Forklift Truck Battery


    Quick Detail:


    Lithium iron phosphate battery pack 25.6V 280AH LiFePO4 battery pack:
    1. Low internal resistance, low self-discharge, no memory effect, safety and environmental protection.
    2. Long cycle life and high specific energy. The life of a single cell ring is more than 4000 times.
    3. Flexible packaging, laminated type, lean liquid, good safety.
    4. The product is maintenance-free, has a wide operating temperature range, high reliability, and

    is environmentally friendly and pollution-free.
    5. Capacity, magnification and size can be customized. The battery combination method can be

    based on customer requirements.
    6. Diversified product structure, providing one-stop solutions for various application fields




    Description:


    15360Wh Lifepo4 Rechargeable Forklift Battery Pack 51.2V 300AH Electric vehicle battery


    Battery Pack: Lifepo4
    Cycle life:4000 times @80%DOD
    Dimension:904*405*615mm
    Warranty:3 years
    Chargeable:Yes
    Battery Size:BATTERY PACK
    Certification:CE,FCC
    Model Number:48V300AH-5
    Place of Origin:Guangdong, China
    Weight:152KG
    The charging ratio:60A
    The discharge rate:120A
    Storage Type:dry, cool and ventilation
    Material:LifePO4 lithium battery pack
    Capacity:300ah
    Standard voltage:51.2V
    Charging cut-off voltage:59.2v
    Discharging cut-off voltage:36.8V



    Specifications:


    ELECTRICAL SPECIFICATIONS

    Nominal Voltage

    25.6V

    Nominal Capacity

    200Ah

    Nominal Energy

    5120Wh

    nternal Resistance

    <30 @50% SOC

    Capacity

    @40A: 300minutes(5hours)

    Self Discharge

    5% /per month

    Tlaximum In Series

    2PCS

    Maximum In Parallel

    No limit

    Discharge Current and Voltage Specifications

    71 AX Continuous Discharge Current

    200A

    Peak Current

    500A

    Discharge pulse current

    700±50A (31±10ms)

    BMS Low Voltge Cut-off

    20V (2.0V±0.05v) pc)

    Short Circuit Protection

    200-800 ps Auto recover or charge release

    Temperature Ranges

    Discharge Temperature

    -20 ~ +65°C

    Charge Temperature

    -20 ~ +45°C

    Storage Temperature Range

    -20 ~ +45°C

    BMS High Temperature Protection

    90°C

    Battery High Temperature Protection

    60°C


    MECHANICAL SPECIFICATIONS

    Terminal Type

    M8

    Weight

    41kg

    Case Dimension(L'W'H)

    550*305*260mm

    Case Type

    Metal case

    Cell type / Chemistry

    LiFePO4

    LCD or Bluetooth Function

    Optional

    BMS:low voltage,high voltage.over temperature,

    Over current,short-circuit protection .etc

    Charge Current and Voltage Specifications

    Max Charge Current

    200A

    Recommended Charge Current

    40A-100A

    End of Charge voltage

    28.8V±0.2V

    Balancing current

    Auto start

    Balancing Voltage

    3.6V±0.05v pc

    COMPLIANCE SPECIFICATIONS


    CE for Battery Pack

    Certifications

    UL1642 & IEC62133 & BIS for


    cells

    Shipping classification

    UN 3480


    80V 300ah Electric Lifepo4 Forklift Battery Deep Cycle Industrial Truck Battery80V 300ah Electric Lifepo4 Forklift Battery Deep Cycle Industrial Truck Battery80V 300ah Electric Lifepo4 Forklift Battery Deep Cycle Industrial Truck Battery



    Notices:
    1. For outdoors, only to generate power. The efficiency of a solar panel is variable depending on
    environmental conditions.

    2. Avoid any shelter (such as buildings, plants, etc.) during use, otherwise, the charging speed will be
    negatively affected.

    3. After the device is successfully connected, it is recommended to move your electronic device into a
    cool and ventilated place. If the electronic device is in a high-temperature environment for a long time,
    power consumption will increase and may occur power failure.


    Applications:
    80V 300ah Electric Lifepo4 Forklift Battery Deep Cycle Industrial Truck Battery

    FAQ:

    Q1. Can I have a sample order?

    A. Yes, we welcome sample order to test and check quality.

    Q2. What about the lead time?

    A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

    Q3. Do you have any MOQ limit?

    A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample

    order is available. Low MOQ, 1pc for sample checking is available.

    Q4. How do you ship the goods and how long does it take to arrive?

    A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea

    shipping is also optional.

    Q5. How to proceed with an order?

    A. Firstly let us know your requirements or application. Secondly, We quote according to your require-

    ments or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order.

    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on the product?

    A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Contact us for more details about Price, Packing, Shipping and Discount.
