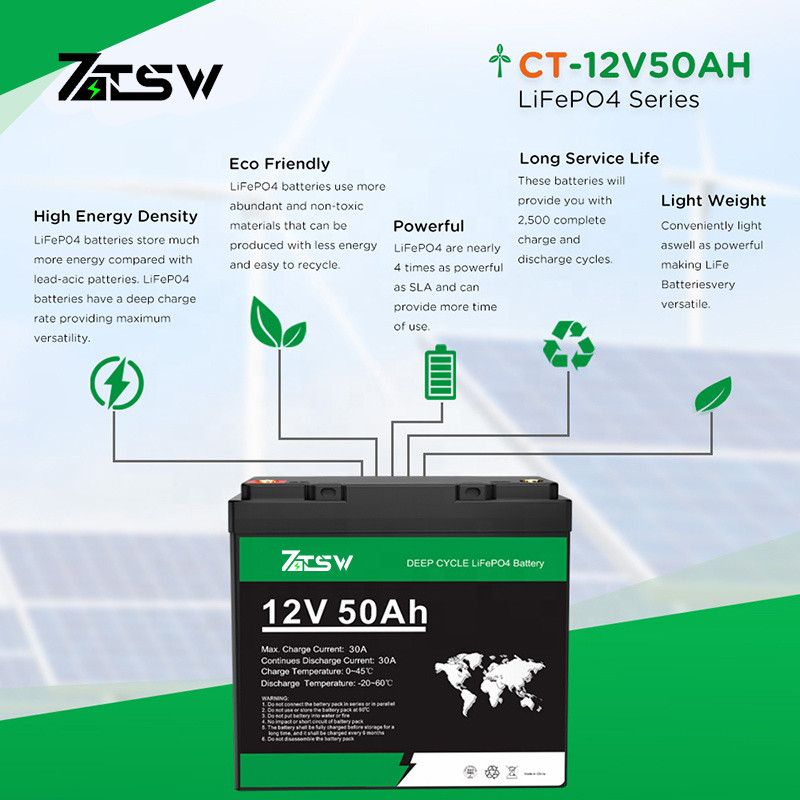

12V 50Ah LiFePO4 Lithium Battery 3000+ Cycles Built-in BMS Travel
Trailer
12V 50Ah Rechargeable Battery Module 3000+ Cycles Built-in BMS
Travel Trailer
Quick Detail:
Protection:
1. Over Charge Protection
2. Over Discharge Protection
3. Over Current Protection
4. Short Protection
Description:
* Automotive Grade LiFePO4 Battery is manufactured by higher energy
density lithium iron phosphate material.
Our 12V 20Ah LiFePO4 battery has 5000-8000 cycles and 10 years
lifetime. Stable and excellent performance
makes it very suitable for solar homes, RVs, campers, fishing,
boats, golf carts, power tools, electric scooters
and off-grid applications.
* 12V LiFePO4 battery has built-in advanced BMS system, which
prevents the battery from malfunctioning
caused by overcharge, overdischarge, overcurrent, short circuit and
high temperature, and extends 12V battery
life. At the same time, our 12.8V 20Ah battery also achieves the
industry-leading IP67 waterproof, so you don't
need to worry about installing it indoors or outdoors.
* 12V 20Ah deep cycle LiFePO4 battery’s flat discharge curve holds
above 12.8V, and 100% of the battery
capacity can be used. Without memory effec, so that no matter what
state the battery is, it can be used as
soon as it is charged.
*This 20Ah LiFePO4 battery is expandable to 4 in series and infinite
parallel for higher voltage (Maximum 48V)
and larger capacity. XZNY lithium batteries are widely used in most
fields, such as: fish finders, trolling motors,
houseboats, children's electric vehicles, electric bicycles,
electric robots, UPS backup power, lighting, portable TVs.
Specifications:
Product Name | 12V 50AH Lifepo4 Battery |
Cell Type | AC 50Ah |
PCM Plate | PCM4S |
Standard Charging Voltage | 14.4±0. 20V |
Standard Charging Current | 10A (0.2C) |
Max continuous charging current | 50A |
Product Dimension | 22.9*13.8*21.5cm |
Weight | 12.6KG |
| Parameter |
| Item | CT-12V6AH 1P4S32650 |
| Brand | CTECHi |
| Type | lifepo4 battery pack |
| Voltage Nominal | 12.8v |
| Capacity Nominal | 6ah |
| Cell Configuration | 1p4s |
| Energy | 76.8wh |
| Weight | 1.5kg |
| Dimension | 151*65*94mm/customized |
| Operating Temperature Range | Charge: 0+60°C |
| Discharge: -20+60℃ |
| Supply Type | Factory |
| Life Cycle | more than 2000 times |
| Customized | Available |
| Warranty | 12 months |
Notices:
If you have multiple lossigy batteries and want to connect them in
series into a 24V, 36V or 48V system,
please carry out the following 2 steps before connecting:
1. Fully charge each battery separately, then stand for 2 hours and
check their voltage.
2. Connect all batteries in parallel and continue charging (if
there is a large difference in the voltage of
one of the batteries, discharge it at least 80% and then fully charge
it again). Do not connect them in series
until their voltages are equal.
If you don't balance them successfully the first time, please
repeat it again.
In addition, you don't have to worry about the balance of cells
inside the battery, because BMS will help
you solve it.
Applications:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it
depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the
different part numbers. 1~10pcs sample
order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea
shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your require-
ments or our suggestions.Thirdly customer confirms the samples and
places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
