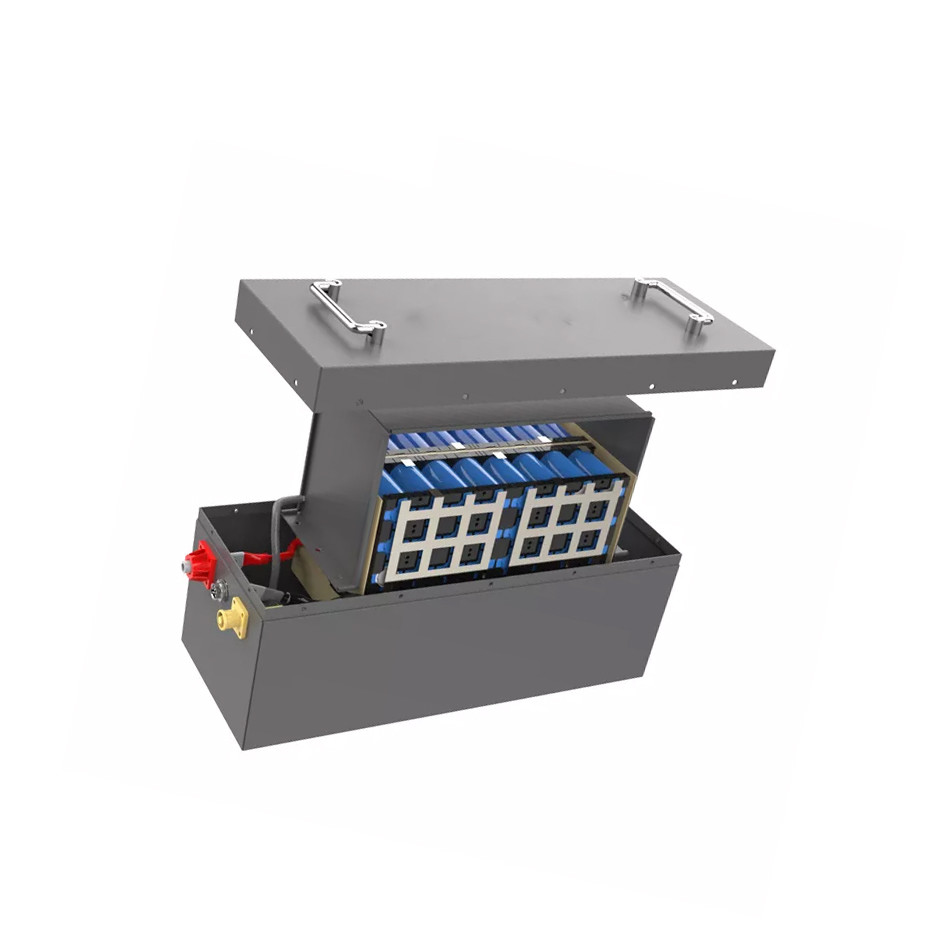

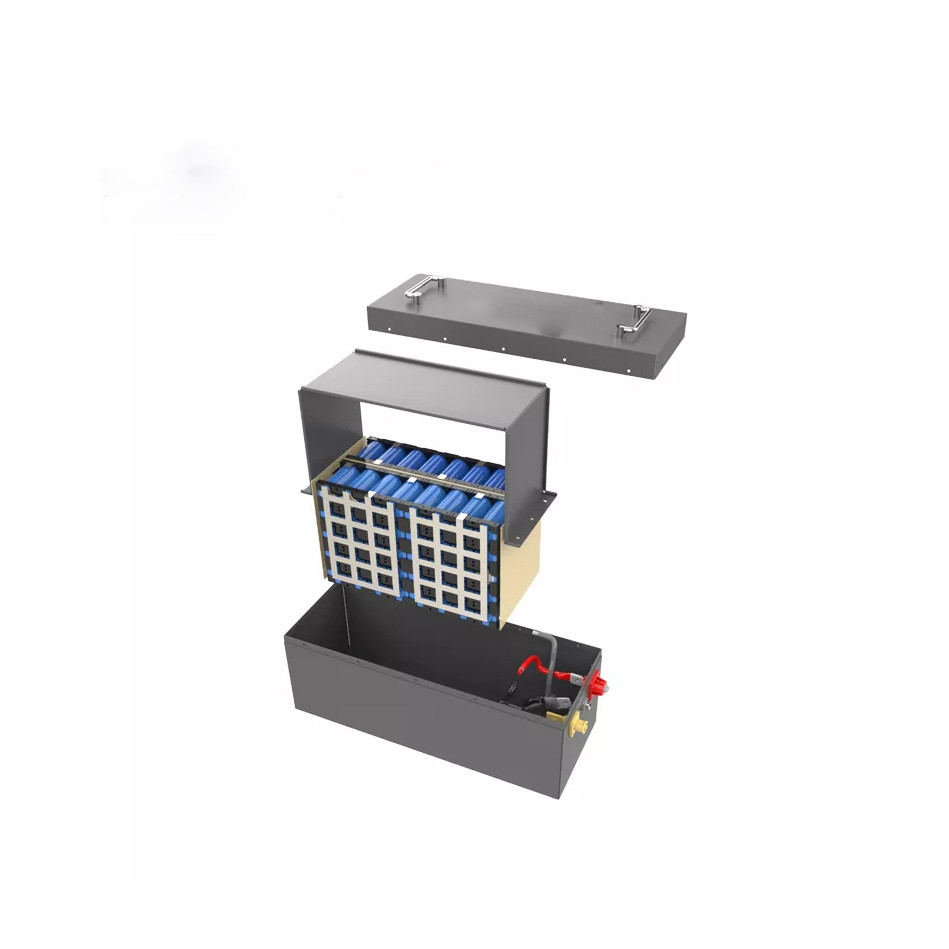

Rechargeable Battery Module 48V 60Ah Primary for GO Kart Car EV
Rechargeable Battery Module 48V 60Ah Primary for GO Kart Car EV
Quick Detail:
Lithium Battery with LiFePO4 Cells
Light weight & Long Lifetime
Built-In BMS & Capacity Expansion
Outdoors & Indoors
Environmentally Friendly
Description:
1.Have good heat dissipation function.
2.Waterproof: The waterproof performance of the battery module is
IP67.
3.Fire protection: owns patented fire protection technology, the
internal vacuum structure of the battery, water
proof, fireproof, shockproof, dustproof, impact resistance,
spontaneous combustion and short circuit prevention.
4.With the same type of battery pack, we can achieve the smallest
size in the industry.
5.Two-wheel electric motorcycle lithium battery, our company can
achieve a lithium battery for electric vehicles
that can travel 500 kilometers on a single charge.
Specifications:
| Items | Parameter |
| Charging Method | CC-CV |
| Charging Voltage | 57.6V |
| Over Charging Protect | 3.65±0.025V |
| Standard Charging Current | 12A (0.2C) |
| Max. Charging Current | 60A |
| Cut-off Charging Current | 1.2A (0.02C) |
| Standard Discharging Current | 12A (0.2C) |
| Max. Discharging Current | 100A |
| Max Peak Discharging Current | 350A(5S),400A(2S) |
| Discharging cut-off Voltage | 37.5V |
| Over Discharging Protect | 2.5±0.08V |
| Over Charge Current | / |
| Over-Discharge Current | 450±40A |
| Internal Resistance | <100mOhm |
| Standard Charge Temperature | 0~45℃ |
| Standard Discharge Temperature | -20~60℃ |
| Storage Humidity | 65%RH not condensed |
| Storage Temperature | -20~60℃ |
| Weight | About 28kg |
Notices:
If you have multiple lossigy batteries and want to connect them in
series into a 24V, 36V or 48V system,
please carry out the following 2 steps before connecting:
1. Fully charge each battery separately, then stand for 2 hours and
check their voltage.
2. Connect all batteries in parallel and continue charging (if
there is a large difference in the voltage of
one of the batteries, discharge it at least 80% and then fully charge
it again). Do not connect them in series
until their voltages are equal.
If you don't balance them successfully the first time, please
repeat it again.
In addition, you don't have to worry about the balance of cells
inside the battery, because BMS will help
you solve it.
Applications:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it
depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the
different part numbers. 1~10pcs sample
order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea
shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your require-
ments or our suggestions.Thirdly customer confirms the samples and
places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Contact us for more details about Price, Packing,
Shipping and Discount.
| Parameter |
| Item | CT-12V6AH 1P4S32650 |
| Brand | CTECHi |
| Type | lifepo4 battery pack |
| Voltage Nominal | 12.8v |
| Capacity Nominal | 6ah |
| Cell Configuration | 1p4s |
| Energy | 76.8wh |
| Weight | 1.5kg |
| Dimension | 151*65*94mm/customized |
| Operating Temperature Range | Charge: 0+60°C |
| Discharge: -20+60℃ |
| Supply Type | Factory |
| Life Cycle | more than 2000 times |
| Customized | Available |
| Warranty | 12 months |
