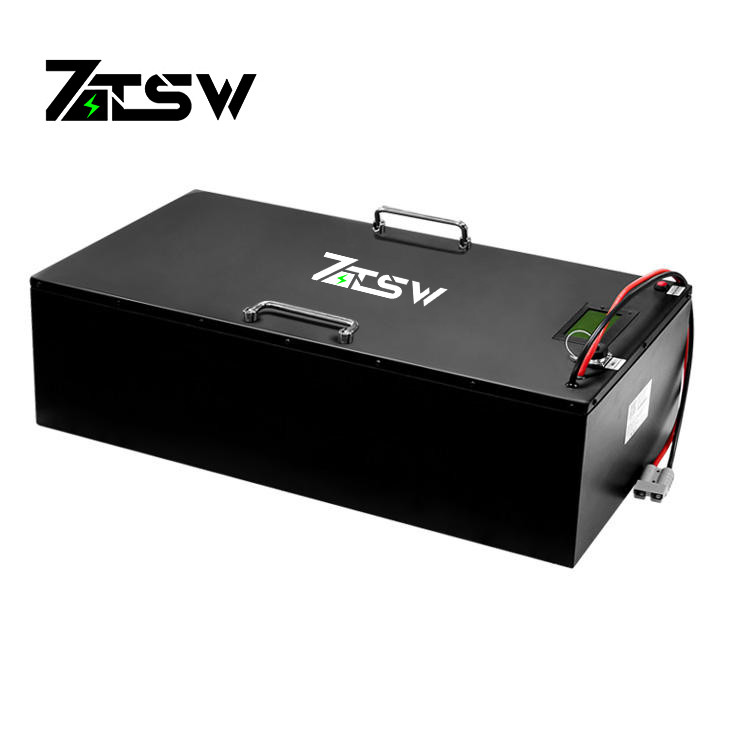

Long life 6000cycles lithium lifepo4 48v 50ah 100ah lto battery
pack 48v for solar
Long life 6000cycles Lithium Ion Truck Battery100ah lto battery
pack 48v for solar
Quick Detail:
LiFePO4 Battery
Maintenance Free & No Leakage
Extended Service Lifetime
Longer Shelf Life
Excellent Deep Discharge Recovery
Install Them Anywhere
Certification CE, FCC, PSE, UN38.3, MSDS, sea and air transport
report
Description:
1.2V 90Ah with classic 4U dimension, it integrates a one-touch
switching button makes the conduct simple.
The compact design can save an appropriate 1/3 volume compared with
the same capacity LiFePO4 battery
and improve space utilization. It is easier to carry or move for
RV, camping, and off-grid. This battery fits for
outdoor camping power and indoor home energy storage with easy
installation.
51.2V 90Ah LiFePO4 batteries have a 4.60kWh independent energy
which is about four times larger than the
regular 12.8V 100Ah battery, supporting you to build a large
off-grid system and feel self-sufficient. Meanwhile,
no need to connect 4*12.8V batteries in series, one single 51.2V
90Ah battery can meet a higher voltage require-
ment at one time. The consistency of the internal cell structure is
better than 4*12.8V batteries in series connection.
Specifications:
| Batterypack | No. | Item | General Parameter | Remark |
| 1 | Combination type | I6SIP | |
| 2 | Total energy | 5l20Wh | 5.12/kWh |
| 3 | Cycle life | *000 次 | |
| 4 | Rated capacity | Nominal capacity | 100 Ah | Standard discharge after charge (fbr battery pack) |
| Minimum Capacity | 100 Ah |
| 5 | Rated voltage | 512 V | Wordking voltage |
| 6 | Discharge cut-off voltage | 40V | Discharge cut-off voltage |
| 7 | Charging voltage | 58.4V | maximum battery voltage |
| 8 | Internal resistance | W60m Q (the value will be adjusted fbr different cell and PACK
scheme) | Under half elec trie state, use AC method to measure internal
resistance Ikllz |
| 9 | consistency | The monomer pressure difference at the end of charge and discharge
is less than 250mV | What is recorded is the highest/low 3.65V/2.5V instantaneous
pressure difference in a single charging section |
| 10 | Maximum charge and discharge duration current | I00A | |
| 11 | The charging current limiting | 10A | |
| 12 | forking temperature range | Charge: 0-55'C | |
| Discharge: -20-^0'C |
Notices:
1. For outdoors, only to generate power. The efficiency of a solar
panel is variable depending on
environmental conditions.
2. Avoid any shelter (such as buildings, plants, etc.) during use,
otherwise, the charging speed will be
negatively affected.
3. After the device is successfully connected, it is recommended to
move your electronic device into a
cool and ventilated place. If the electronic device is in a
high-temperature environment for a long time,
power consumption will increase and may occur power failure.
Applications:
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it
depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the
different part numbers. 1~10pcs sample
order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea
shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your require-
ments or our suggestions.Thirdly customer confirms the samples and
places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Contact us for more details about Price, Packing,
Shipping and Discount.
