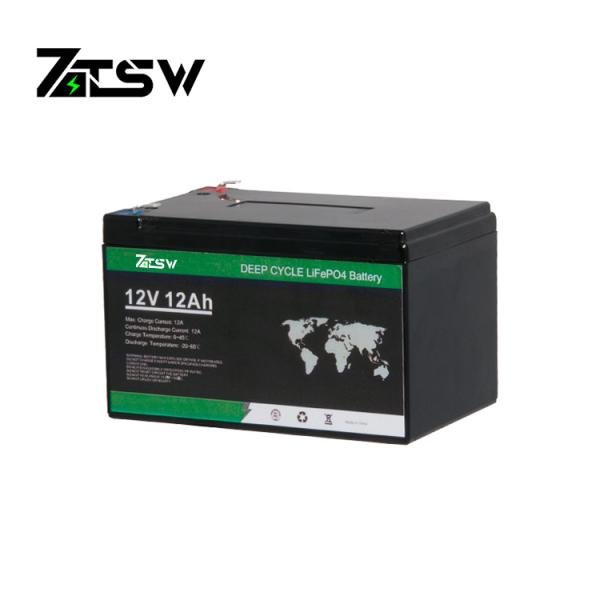

Deep Cycle LiFePO4 Battery Pack 12.8V 12ah Lithium Ion Battery Pack
Deep Cycle LiFePO4 Battery Pack 12.8V 12ah Lithium Ion Battery Pack
Quick Detail:
Capacity for assembled cell discharging by 0.2C:＞12AH
Battery Voltage:12.4A
Standard discharging method:0.2C constant current discharge to 8V
Maximum charge current:21A/60A-1s
Maximum discharge current:Assemblage Impedance ≤150mΩ
Internal Impedance:0~45℃ 60±25%R.H.
Operation Temperature and relative humidity Range:-5~60℃ 60±25%R.H.
| Items | Parameter |
| Charging Method | CC-CV |
| Charging Voltage | 14.4±0.2V |
| Over Charging Protect | 3.65±0.025V |
| Standard Charging Current | 2.4A (0.2C) |
| Max. Charging Current | 12A |
| Cut-off Charging Current | 0.24A (0.02C) |
| Standard Discharging Current | 2.4A (0.2C) |
| Max. Discharging Current | 12A |
| Discharging cut-off Voltage | 10V |
| Over Discharge Current | 36±5A |
| Over Discharging Protect | 2.5±0.08V |
| Internal Resistance | <180mOhm |
| balancing voltage | 3.60±0.05V |
| balancing current | 36±5mA |
| Standard Charge Temperature | 0~45℃ |
| Standard Discharge Temperature | -20~60℃ |
| Storage Humidity | 65%RH not condensed |
| Storage Temperature | -20~60℃ |
| Weight | About 1.42 Kg |
Advantage:
♦ Low Self Discharge
♦ Long Designed service Life ,Deep Cycles
♦ Excellent Discharge Performance
♦ Environment Friendliness
♦ Wide suitability of ambient temperature range
High Quality:
* 100% pre-tested before leaving the factory,We will
matched(capacity,voltage,resistance) all cells before delivery
* Excellent customer service and technical support
* Strict quality control system and professional R&D
department.
* The QR code is intact, Grade A, Brand new.
